You can normally access this dialog by clicking the Edit index entry button of the Index panel of the Control Board
The Control Board is a component of the Atlantis GUI that brings together various tools and commands for document design. It is a set of panels each of which deals with one specific characteristic of the active document:
Learn more... .
This dialog can be used to modify an existing index entry in the document.

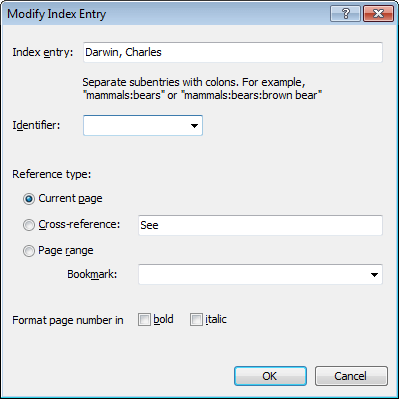

In the "Index entry" edit box at the top of the dialog, specify a term or topic that this index entry should contribute to the document's index. On the illustration above, the index entry would add a "Darwin, Charles" item to the index.

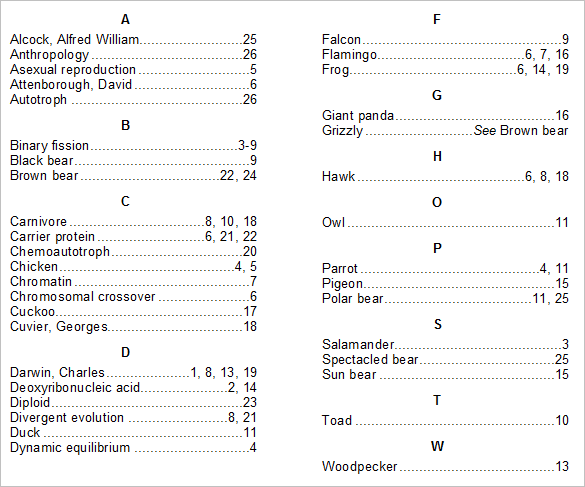

In simpler cases, document indexes have a linear (one level) structure - like on the illustration below:

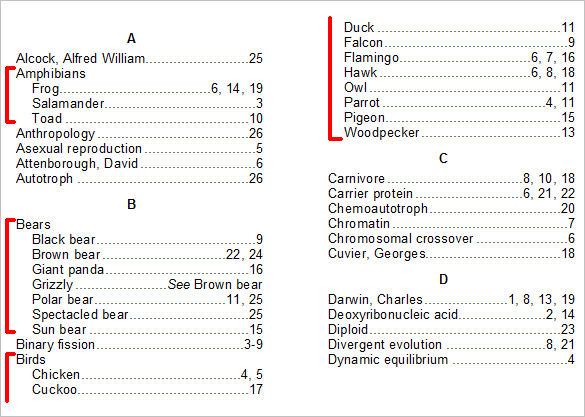

But you might wish to group sets of closely related concepts in your index, i.e. create a hierarchical (multilevel) index:
To do so, use colons within the entry text to separate subentries of different levels. For example, to have the "Frog", "Salamander", and "Toad" items grouped under the "Amphibians" main entry in the index (as shown on the illustration above), create the corresponding index entries with the following entry text: "Amphibians:Frog", "Amphibians:Salamander", and "Amphibians:Toad". This would create a 2-level index. The 1-level item "Amphibians" would be associated with the "Index 1" style in the generated index. And the 2-level items "Frog", "Salamander", and "Toad" would be associated with the "Index 2" style.
You can have items of up to 9 levels in your index. Just use colons to separate corresponding subentries within the entry text. For example, "Amphibians:Frog:Bullfrog", or "Amphibians:Frog:Bullfrog:American bullfrog".
In most cases, items of the generated index are followed by the ordinary number of a page on which the corresponding index entries reside. For example, if you created an index entry with the "Frog" entry text on page 2 of your document, the "Frog, 2" item would be included in the document index. This is how an index entry gets included in the index if the "Current page" reference type is checked.

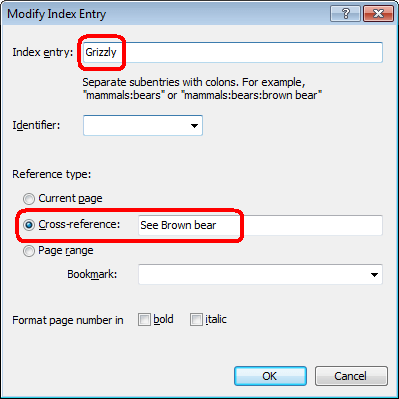

Instead of referring to a page number, an index entry can refer to another entry of the index. If you check the "Cross-reference" option, you can type a cross-reference text (normally starting with "See ") that should be put in the index for this entry instead of a page number. For example, an index entry with the following options:
would add the following item to the index: "Grizzly, See Brown bear".
Finally, an index entry can refer to a range of pages. Such index entries get included in the index like this: "Bears, 12-15". To make an index entry refer to a page range, you should first bookmark the corresponding pages in your document (select the required fragment in your document, then press ShiftAltB or click the button of the Insert toolbar ). Then you can check the "Page range" option in the "Modify Index Entry" dialog, and choose the corresponding bookmark from the "Bookmark" box.

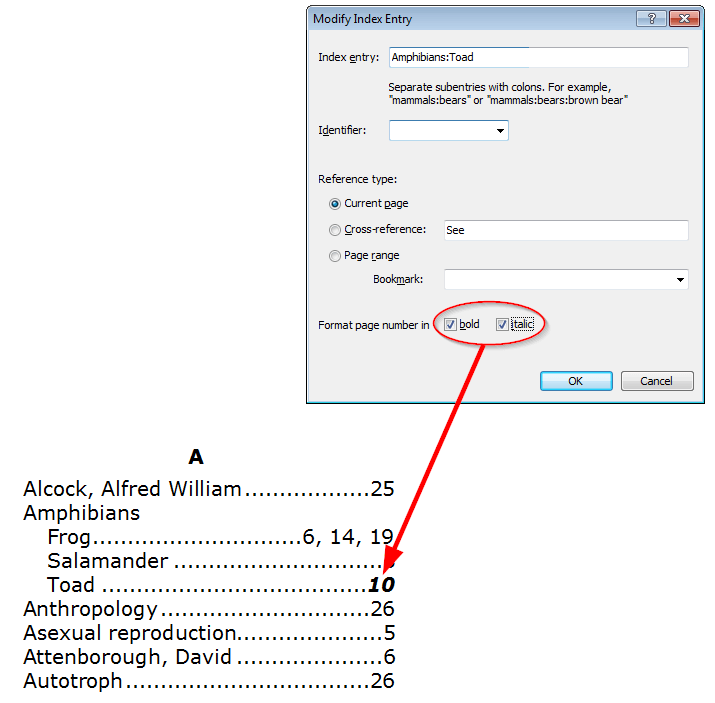

Normally the font format of page numbers in an index matches the font format of the corresponding "Index N" styles. But if you check the "Bold" and/or "Italic" options in the "Modify Index Entry" dialog, the corresponding item of the index would have the page number formatted in bold and/or italic irrespective of the font format of the "Index N" styles:
